Many people think of BGP as something that only your most senior network engineers need to worry about, but the truth is BGP changes can have a direct impact on your customers’ user experience and even their ability to access your site.
What happens when I change my provider?
Who you peer with determines exactly how your customers reach you over the Internet and how long it takes them to reach you. Changing providers is like deciding to take an entirely different set of roads when you go back and forth to work. Let’s take a look at a major financial website that made a BGP change.

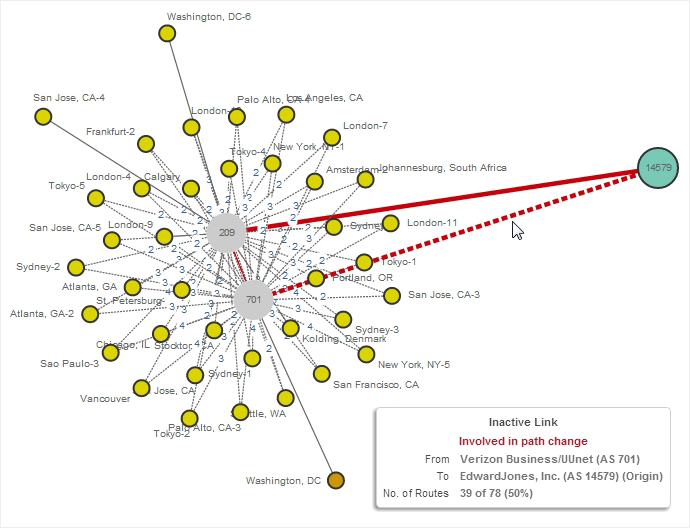

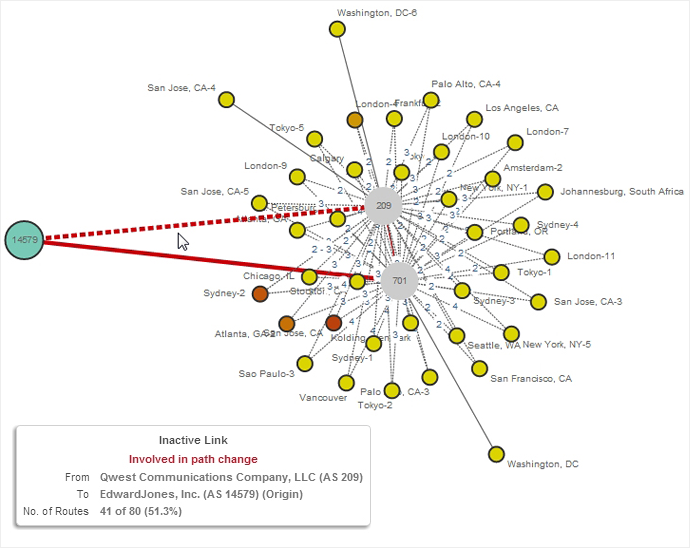

The financial website normally advertises one prefix through Qwest and the other through Verizon. They decide to make a change to advertise both their prefixes via Verizon (Figure 1).

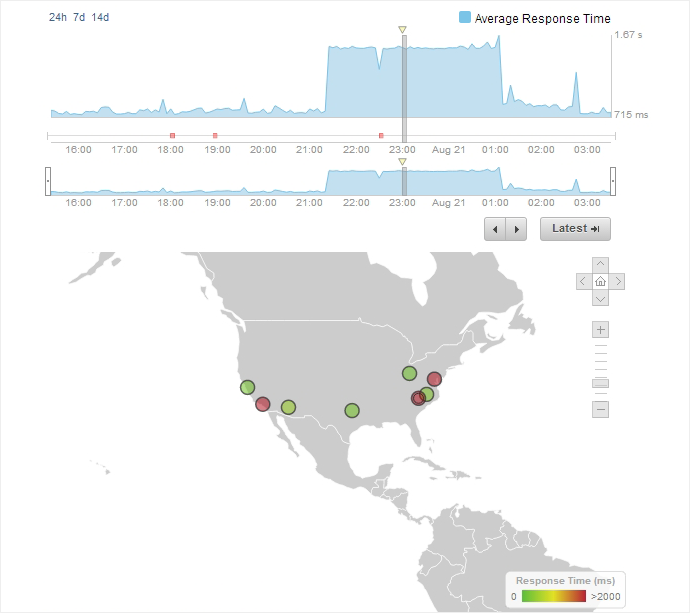

BGP monitoring allows us to directly correlate changes to Internet routing with the performance of the application being tested. So did we see any change in response time? In fact, after the BGP change the financial site saw a very large increase in response time for several hours (Figure 2).

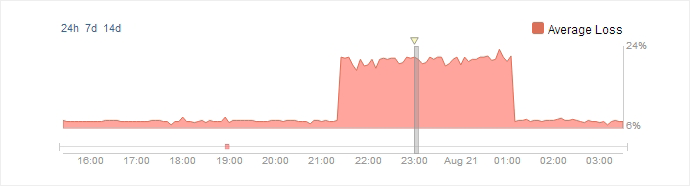

In addition to BGP monitoring, the ThousandEyes platform correlates changes in network performance with BGP changes. A large increase in packet loss directly lines up with the observed increase in response time (Figure 3).

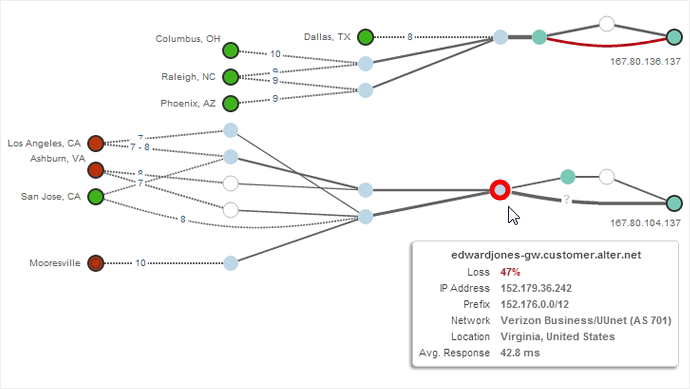

Not only can we see that packet loss is occurring, we can leverage path visualization to help us determine where it is occurring. From the path visualization it is clear that a specific customer gateway node in the Verizon network is experiencing loss. We can also see that only locations that access the website using the prefix involved with the BGP changes are the ones having issues (Figure 4).
Now that we know what is behind this issue, let’s see if we can figure out why response time went back to normal after a few hours. It turns out the answer is quite simple; another set of BGP changes occurred that set things back the way they were in the first place with one prefix advertised via Qwest and one advertised via Verizon (Figure 5).
Not Every Impact is Obvious

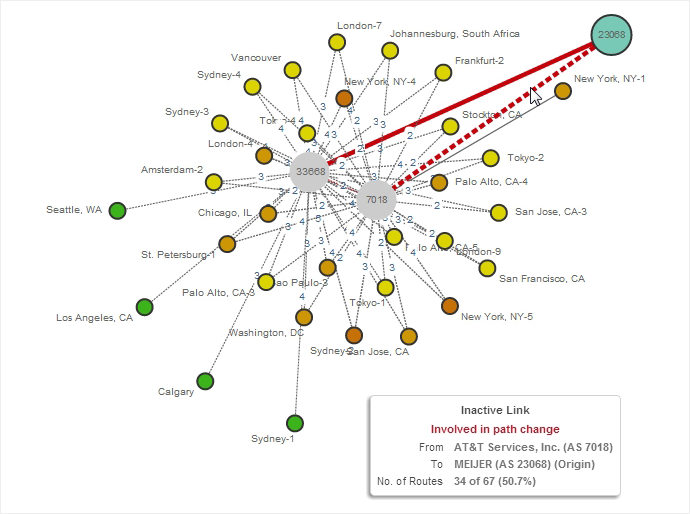

In the first example we saw a BGP change that had a dramatic impact on end user experience and resulted in significant network performance issues. However, BGP changes often impact websites and end users in important ways that aren’t quite so obvious. Let’s look at an example of a major retailer making a BGP change to route all their traffic via Comcast; they previously routed most of their traffic via AT&T and a smaller portion via Comcast (Figure 6).

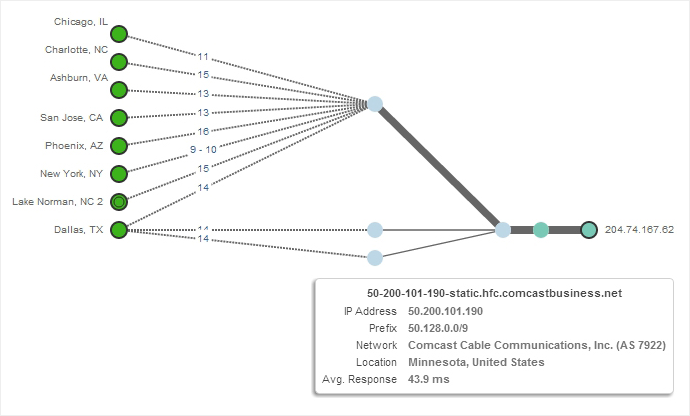

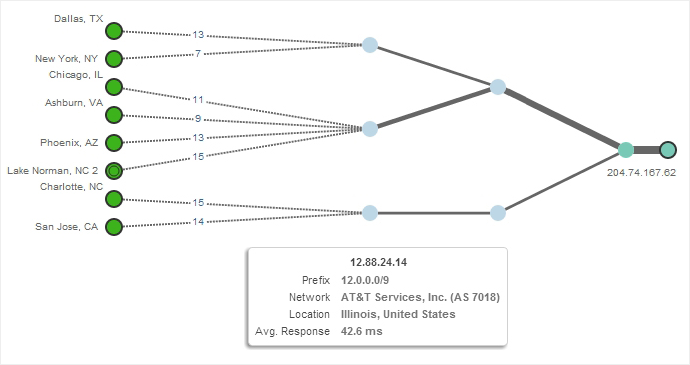

Path visualization isn’t just used to solve problems, we can also use it for several other purposes including verifying that BGP changes did what we thought they would. We can see both how traffic transited prior to the change (Figure 7) and compare that to after the change (Figure 8).

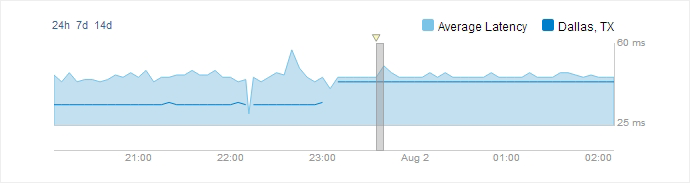

Now that we’ve verified that the changes did indeed result in all traffic being routed via Comcast, let’s see if this had any impact on network performance. Since BGP changes impact the path a customer or user takes to access your site, they can also impact network latency. In this retailer case, we don’t see a change in the overall average latency. However, we do see significant changes for some locations like Dallas, TX which had been routed via AT&T before 23:00 and via Comcast afterwards (Figure 9).

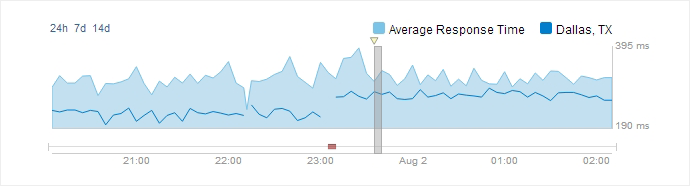

We can now see if this increase in latency has any impact on application performance. Our Dallas location also sees a significant increase in response time, even though the overall average response time doesn’t appreciably change (Figure 10).
Relating BGP Changes to Service Delivery
